Manufacturing Plant Semi-auto 2000B/H One Heater Pull Two Blow Moulding Machine Weight KG 1250 KG

Plastic Processed : PP, PET, PET

Max.Bottle Height(mm) : 350 mm

Neck Diameter(mm) : 30 mm

Max.Bottle Diameter(mm) : 120 mm

Bottle Volume(ml) : 3000 ml

Condition : New, Brand New

Application : Bottle

Place of Origin : Shanghai, China

Brand Name : NC

Year : 2023

Voltage : 380V/50HZ

Dimension(L*W*H) : 1450*590*1650(mm)

Hollow part volume : 3000ml

High Pressure Valve Brand : AirTac

Clamping Force (kN) : 50

Rotary Cylinder Brand : AirTac

PLC Brand : MITSUBISHI

Power (kW) : 15

Weight (KG) : 1250 KG

Automation : Semi-automatic

Warranty : 2 years

Key Selling Points : Competitive Price

Showroom Location : India, Viet Nam, Kenya

Applicable Industries : Manufacturing Plant

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, PLC, Pressure vessel, Gearbox

Automatic : Semi

Model Number : 1000A

Power(W) : 15KW

Weight : 1250kg

After-sales Service Provided : Engineers available to service machinery overseas

Blow Moulding Type : Stretch Blow Moulding

Brand : NC

Control : PLC+Touch Screen

Packaging Details : Standard wooden case

Port : Shanghai

Supply Ability : 200 Set/Sets per Month

Price : $3,100.00/sets 1-4 sets

MOQ : 1 set

Contact Now

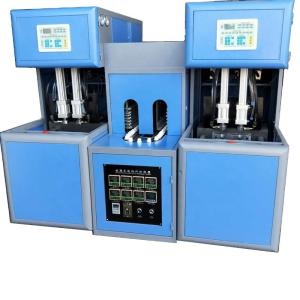

Manufacturing Plant Semi-auto 2000B/H One Heater Pull Two Blow Moulding Machine Weight KG 1250 KG

Semi-automatic two cavity blow molding machine

NC series semi automatic bottle blowing machine is the most stable two step blow down equipment of our factory, from one cavity to four cavity, the maximum is 20L,suitable for blowing PET, PP crystal forming kind raw material any shape carbonated beverage bottles, mineral water bottles, cosmetics bottles, wide diameter bottles, high temperature resisting bottles and other plastic container.

Machine components of

NC1000A semi-auto blowing machine

Item	Name	Brand
Pneumatic components	Cylinder	TAIWAN Air TAC
Electrical components	Main computer	TAIWAN DELTA
	Human machine interface (HMI)	TAIWAN DELTA
	Relay	KOREA AUTONICS
	Photoelectric switch	TAIWAN Air TAC
Remark	All the components are selected with Internationally applied high-tech products.

1. Technical Parameters of NC1000A blowing machine

Model	NC1000A
Output	Based on bottle shape	800-1200PCS/H
Product Specifications	Bottle neck size	10mm-120mm
	Bottle body diameter	15mm-130mm
	Bottle height	50mm-350mm
Mold Specifications	Cavity	2cavities
	Mold thickness	100~250mm
	Max stretching distance	*430380mm**
Machine Power	Power Voltage	380v 3Phase / 220v 3Phase 50/60HZ
Machine Power	Installed power / Actual power	18kw/10kw
Air Source	High pressure air compressor	1.2m3/min 3.0MPa
Air Source	Air dryer	0.6m3/min 1.0MPa
Water chiller	Chilled water yield	15L/min
Blowing machine size	Lengthwidthheight/weight	*17006501700mm/1000kg*
Heater size	Lengthwidthheight/weight	*17006001450mm/300k*
